EMV bank card production & personalisation

Contactless, EMV chip and encryption, built for secure transactions.
Request a quote Specifications

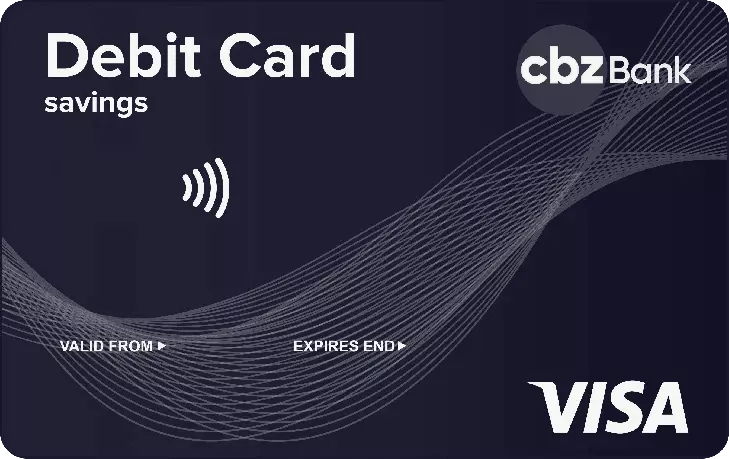

CBZ Bank Visa debit card produced by Cardpro, with gold EMV chip and contactless indicator

Bank Cards

Experience the future of banking with our advanced Bank Cards. From contactless payments that streamline transactions to robust security features like EMV chips and encryption, our cards ensure seamless and secure financial interactions for both businesses and consumers.

Specifications

Bank Cards specifications

Final specifications are confirmed with your quote.

Bank Cards specifications
Format ISO/IEC 7810 ID-1 (CR-80), 85.60 × 53.98 mm
Thickness 0.76 mm nominal (0.030 in.)
Contact interface EMV chip module, ISO/IEC 7816
Contactless interface ISO/IEC 14443, for contactless payments
Encoding Magnetic stripe and smart card encoding
Personalisation Laser engraving, embossing / topping, colour printing
Protective finish Basic topcoat, CardGard® UV-curing topcoat, DuraGard® laminate
Proofing Art-to-proof in approximately one hour

Card anatomy

Five layers, laminated into one card

Typical construction of a dual-interface (contact and contactless) bank card.

  1. 1 Front overlay Clear protective film over the print, with topcoat or DuraGard® laminate.
  2. 2 Printed front core Your artwork, printed in full colour on the HP Indigo press.
  3. 3 Inlay with antenna & chip Contactless coil (ISO/IEC 14443) bonded to the EMV chip module (ISO/IEC 7816).
  4. 4 Printed back core Reverse-side print, signature panel and fine-print terms.
  5. 5 Back overlay & magstripe Protective film carrying the magnetic stripe (ISO/IEC 7811).

Case study

CBZ Bank Visa savings debit card with EMV chip and contactless indicator Banking CBZ Bank Visa savings debit card See the case study
